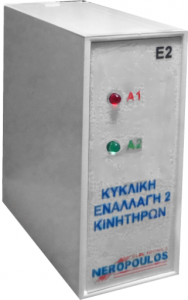

Circular switching engine

E2







Description

* Device is used to alternate the two engine operation.

* Each time the command is activated P1 activated outputs A1 and A2 the change.

* If enabled and the two commands P1 and P2 then first A1 output is activated and after 4 sec and the A2 output.

SPECIFICATIONS

Supply voltage:                                 230 V ac ~ / 50HZ

Contact relay output:                     10A 250V ~

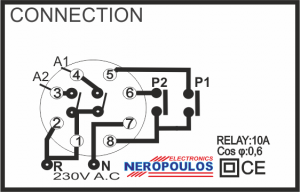

Connection Mode:                          Base type 8

Housing:                                           Self extinguishing plastic box dimensional 8X3,6X7,5cm

Protection class:                              IR20V

Operating temperature:                 -20 +50 C (-4 +122 F)
